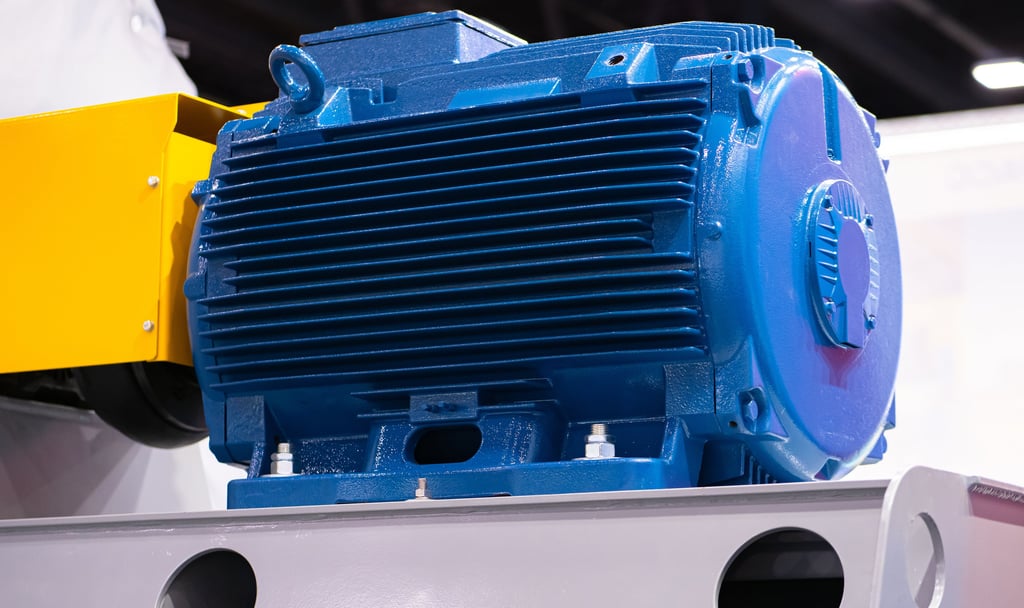

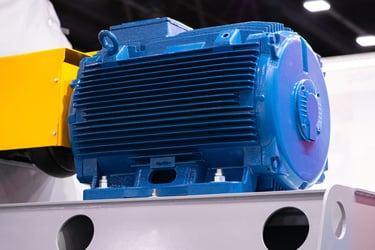

Cast Iron: Global Standard for Electric Motor Casings and Bodies

Electric motors drive a vast range of applications, from industrial machinery to electric vehicles (EVs). While much of the focus in motor design is on performance and efficiency, the choice of material for motor casings often receives less attention. Cast iron, a material with a long history of industrial use, stands out as a strong contender for electric motor casings due to its unique combination of properties. For manufacturers seeking reliable suppliers of cast iron motor bodies and motor casing castings capable of meeting global requirements, the advantages of this material are undeniable. This article explores why cast iron deserves greater recognition and how it compares favourably to other materials.

The Critical Role of Motor Casings

Motor casings are not merely protective enclosures; they contribute significantly to:

1. Thermal Management: A casing's thermal properties influence how effectively a motor dissipates heat.

2. Structural Integrity: Casings must endure mechanical stress, vibration, and environmental conditions.

3. Electromagnetic Shielding: Ensuring smooth operation by minimizing electromagnetic interference (EMI).

4. Cost Efficiency: Material choice impacts production costs and lifecycle performance.

Cast Iron: A Superior Material for Motor Casings

1. Exceptional Mechanical Strength

Cast iron is renowned for its high compressive strength and rigidity. These qualities make it an excellent choice for heavy-duty applications where structural integrity is paramount. Unlike aluminium, cast iron can withstand substantial mechanical stresses without deformation, ensuring long-term durability in demanding environments.

2. Outstanding Thermal Management

Thermal conductivity is a critical factor in motor efficiency. Cast iron’s ability to absorb and dissipate heat effectively helps prevent overheating, even in high-performance motors. This reduces the need for complex cooling systems, lowering manufacturing and operational costs.

3. Superior Electromagnetic Shielding

In applications where EMI can compromise motor performance, cast iron’s natural properties provide excellent shielding. Its high density and magnetic permeability outperform aluminium and composites in reducing electromagnetic interference, ensuring stable motor operation.

4. Cost-Effectiveness

Cast iron is widely available and cost-effective compared to advanced alloys and composites. Its lower raw material cost and ease of casting make it an attractive choice for manufacturers aiming to balance performance with affordability. Additionally, the material’s durability minimizes maintenance and replacement costs over the motor's lifecycle.

5. Durability and Corrosion Resistance

Modern cast iron formulations, such as ductile iron, offer enhanced corrosion resistance, making them suitable for challenging environments. Protective coatings and treatments can further extend the lifespan of cast iron casing, ensuring reliability in harsh industrial or outdoor settings.

How Cast Iron Compares to Other Materials

Aluminum

• Advantages: Lightweight and corrosion-resistant.

• Drawbacks: Lower mechanical strength and less effective electromagnetic shielding compared to cast iron. Aluminium also requires additional design considerations to manage heat dissipation effectively.

Steel

• Advantages: High strength and excellent electromagnetic shielding.

• Drawbacks: Heavier and more expensive to machine than cast iron. Steel’s lower thermal conductivity makes it less effective in managing heat.

Magnesium Alloys

• Advantages: Extremely lightweight and strong.

• Drawbacks: Higher cost, susceptibility to corrosion, and limited electromagnetic shielding compared to cast iron.

Composites

• Advantages: Lightweight and corrosion-resistant.

• Drawbacks: High manufacturing costs, complex production processes, and poor thermal conductivity compared to cast iron.

Emerging Innovations in Cast Iron

1. Enhanced Ductile Iron: Advances in metallurgy are improving the strength, ductility, and corrosion resistance of cast iron, making it suitable for even more demanding applications.

2. Additive Manufacturing: Emerging techniques enable more intricate designs and weight optimization for cast iron components.

3. Sustainability Initiatives: Recyclable and energy-efficient, cast iron aligns with sustainability goals and circular economy principles.

Strategic Considerations for Using Cast Iron

When choosing cast iron for motor casings, manufacturers should assess:

• Application Needs: Evaluate load, thermal, and environmental requirements.

• Design Flexibility: Leverage the material’s casting versatility for complex geometries.

• Cost Efficiency: Factor in material costs and long-term performance benefits.

• Sustainability Objectives: Consider cast iron’s recyclability in meeting ESG goals.

Conclusion

Cast iron, often overshadowed by newer materials, remains an exceptional choice for electric motor casings. Its superior strength, thermal management, electromagnetic shielding, and cost-effectiveness make it a compelling option for manufacturers seeking reliable and efficient solutions. For businesses seeking a trusted supplier of cast iron motor bodies and electric motor casings capable of meeting global requirements, the opportunity to harness the proven benefits of cast iron has never been greater.

For additional information on how Exxelmet’s cast iron electric motor casings and bodies can benefit your specific application, get in touch with us here on send an email to contact@exxelmet.com.

Partnering with Exxelmet in high-quality castings ensures access to solutions that drive performance, reliability, and sustainability in a competitive market.
